Flexo Plate Mounting Sleeves

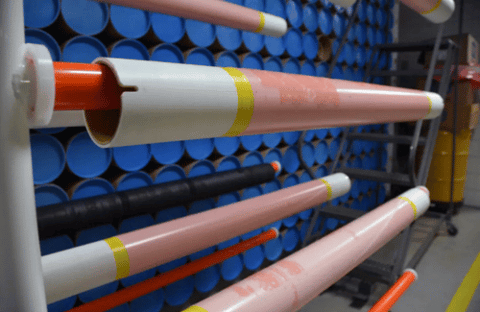

A flexo plate mounting sleeve also called a flexo sleeve, printing sleeve, or plate mounting sleeve is a precision-engineered cylindrical sleeve that fits over a flexographic press cylinder or onto an air mandrel in sleeve-based press systems. The sleeve carries the flexographic printing plate (a flexible photopolymer or rubber image carrier) during the press run. The plate is mounted to the sleeve surface using double-sided plate mounting tape (commonly called sticky-back), positioned against scribe lines or registration marks engraved on the sleeve. As the press runs, the sleeve rotates the mounted plate through the ink station, where ink is transferred from an anilox roll to the raised image areas of the plate, and then onto the substrate at the impression nip.

PRS flexo sleeves are manufactured to TIR (Total Indicated Runout) and outside diameter tolerances of ≤ .0005". This precision level is the threshold required for tight-register process color work, fine halftone reproduction, high-line-count printing, and any flexographic application where dimensional precision directly affects print quality. TIR and diameter tolerance are the most consequential specifications in flexo sleeve performance — sleeves that don't hold these tolerances become the limiting variable in press print quality, regardless of plate, ink, or anilox specification.

PRS flexo sleeves are available in lengths up to 120" standard, with custom applications over 120" available on request. Standard diameter range is from 2" to 26", with larger diameter sizes available upon request. Sleeve dimensions are specified to match the customer's press configuration, mandrel system, and printing application. Contact PRS with your press specifications and dimensional requirements to confirm sleeve availability.

PRS flexo sleeves are engineered for compatibility with all three major flexographic ink systems: water-based inks, UV-cured inks, and solvent-based inks. Material selection and surface treatment deliver chemical resistance to each ink chemistry without dimensional change, surface degradation, or loss of sticky-back tape adhesion. The sleeves also resist common pressroom cleaning solvents and wash-up chemistry, supporting standard pressroom operations across the full range of flexographic production environments.

Sticky-back — also called plate mounting tape — is a double-sided adhesive tape used to mount the flexographic printing plate to the flexo sleeve surface. The tape includes adhesive on both faces (one face bonds to the sleeve, the other to the plate) plus a carrier layer that may be foam-based for cushioning, film-based for rigidity, or cloth-based for specific application requirements. Sleeve surface specification directly affects sticky-back tape adhesion and removal performance — the sleeve must hold the tape securely during the press run, but also release the tape cleanly during plate dismounting without leaving residue or damaging the plate. PRS flexo sleeves are specified for full compatibility with standard double-sided plate mounting tapes across all major brands and thickness grades.

Brass-reinforced features are physical reinforcements built into the flexo sleeve to resist wear in the areas of the sleeve that experience the highest mechanical stress during normal operation. Brass-reinforced notches help with plate alignment and rotation during mounting; reinforced scribe lines preserve the registration marks used to position the plate accurately; and brass end plates protect the sleeve ends from damage during installation, removal, and handling. In high-volume printing environments — particularly label production with frequent plate changeovers — these brass features can significantly extend sleeve service life by preventing the wear patterns that typically retire a standard sleeve from production.

Yes. PRS resurfacing service extends the service life of used flexo sleeves whose core geometry is intact but whose surface has worn from production cycles. Resurfacing restores the sleeve surface to specifications that support reliable sticky-back tape adhesion and dimensional accuracy, postponing the cost of full sleeve replacement. Resurfacing is typically the right choice when the sleeve dimensional and structural integrity are within acceptable tolerances and the degradation is limited to the working surface. Replacement is indicated when core dimensional integrity has been compromised or when the economics of resurfacing approach the cost of a new sleeve. PRS can evaluate customer-supplied sleeves and provide a refurb-vs-replace recommendation.

PRS flexo sleeves are manufactured for compatibility with all major OEM flexographic press platforms across narrow-web label, mid-web flexible packaging, wide-web flexible packaging, corrugated post-print and pre-print, and specialty press configurations. Sleeve specifications are matched to each press make and model based on the customer's existing equipment. For legacy press configurations where standard catalog sleeves may not be commercially available, PRS supplies custom sleeves engineered to match the legacy press requirements. Contact PRS with your press make, model, and existing sleeve specifications to confirm compatibility and lead time.

PRS flexo plate mounting sleeves are used across the full range of flexographic printing markets. Primary applications include label and narrow-web printing (pressure-sensitive labels, shrink sleeves, in-mold labels, specialty labels); flexible packaging (pouches, films, foils, laminated structures for food, beverage, personal care, and household products); corrugated post-print and pre-print (direct-on-corrugated and linerboard printing); envelope and direct mail printing; tag, ticket, and specialty paper printing; beverage labels and multi-pack carriers; hygiene, tissue, and nonwovens printing; and industrial and specialty flexographic applications including security printing, technical labels, and pharmaceutical packaging.

Yes. Standard PRS sleeve ID labels include full sleeve specifications (dimensions, tolerances, manufacture date) and can be customized to include customer-specific information per request — internal part numbers, press assignment codes, ink system designations, plate type compatibility, or any other identifier that supports pressroom inventory management and sleeve traceability. For high-volume printing operations managing large sleeve inventories, custom labeling significantly simplifies pressroom workflow and reduces sleeve misidentification at changeover.

Yes. PRS supplies the complete flexographic press ink system from a single supplier — including flexo plate mounting sleeves, anilox bases and sleeves, anilox roll covers, bridge sleeves, anilox rollers (through PRS/ARC), and related printing components. This single-source supply approach supports coordinated specification across the full press configuration, simplified procurement, consistent quality, and consolidated service and refurbishment relationships. For converters and OEMs running multi-press operations, PRS can support full sleeve inventory programs across all press components.

Lead times depend on sleeve size, custom feature requirements, brass reinforcement specifications, and current production scheduling. Standard sleeves in standard dimensions typically have shorter lead times than custom-dimensioned sleeves or sleeves with non-standard reinforcement features. Resurfacing service has separate, typically shorter lead times than new sleeve manufacturing. PRS recommends engaging early in the planning timeline — particularly for high-volume sleeve inventory programs or replacement sleeves coordinated with planned press downtime. Contact PRS directly for a lead time estimate specific to your application.

Yes. PRS serves flexographic printing customers across the United States and Canada. We supply new flexo plate mounting sleeves, custom-dimensioned sleeves for OEM and legacy press configurations, sleeve resurfacing services, and full sleeve inventory program support to converters and OEMs across all major North American markets. Our team handles cross-border specification, logistics, and customer service coordination as part of our standard process.
